MAX31910 - Digital Input Translator/Serializer

Maxim Integrated

📥 Download Datasheet

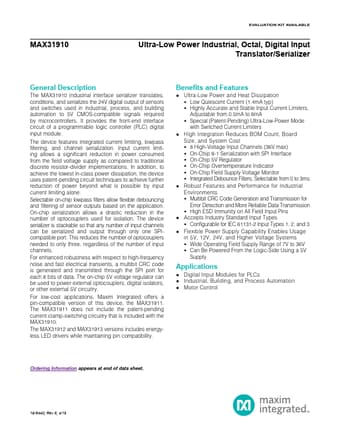

MAX31910 Datasheet Preview — Preview of MAX31910 PDF

Datasheet Details

Part number: MAX31910
Manufacturer: Maxim Integrated ↗
File Size: 857.78 KB
Datasheet: MAX31910-MaximIntegrated.pdf
Description: Digital Input Translator/Serializer

MAX31910 Product details

Description

The MAX31910 industrial interface serializer translates, conditions, and serializes the 24V digital output of sensors and switches used in industrial, process, and building automation to 5V CMOS-compatible signals required by microcontrollers.

Features

integrated current limiting, lowpass filtering, and channel serialization. Input current limiting allows a significant reduction in power consumed from the field voltage supply as compared to traditional discrete resistor-divider implementations. In addition, to achieve the lowest in-class power dissipation, the device uses patent-pending circuit techniques to achieve further reduction of power beyond what is possible by input current limiting alone. Selectable on-chip lowpass filters allow flex.
