MAX31915 - Digital Input Translator

Maxim Integrated

📥 Download Datasheet

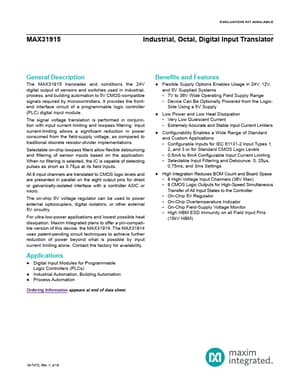

MAX31915 Datasheet Preview — Preview of MAX31915 PDF

Datasheet Details

Part number: MAX31915
Manufacturer: Maxim Integrated ↗
File Size: 646.04 KB
Datasheet: MAX31915-MaximIntegrated.pdf
Description: Digital Input Translator

MAX31915 Product details

Description

The MAX31915 translates and conditions the 24V digital output of sensors and switches used in industrial, process, and building automation to 5V CMOS-compatible signals required by microcontrollers.

Features

Flexible Supply Options Enables Usage in 24V, 12V, and 5V Supplied Systems.
7V to 36V Wide Operating Field Supply Range.
Device Can Be Optionally Powered from the LogicSide Using a 5V Supply.
Low Power and Low Heat Dissipation.
Very Low Quiescent Current.
Extremely Accurate and Stable Input Current Limiters.
Configurability Enables a Wide Range of Standard and Custom.
