MAX3262

High-Speed Limiting Amplifier

MAX3262 Features

* o 900MHz Bandwidth o 48dB Maximum Gain o Chatter-Free LOS o Programmable LOS Threshold o Single +5V

MAX3262 General Description

The MAX3262 limiting amplifier with its high gain and wide bandwidth is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 1Gbps. The amplifier’s gain can be adjusted between 33dB and 48dB. At maximum gain, signals as small as 6mVp-p can be amplified to drive devices wi.

MAX3262 Datasheet (87.88 KB)

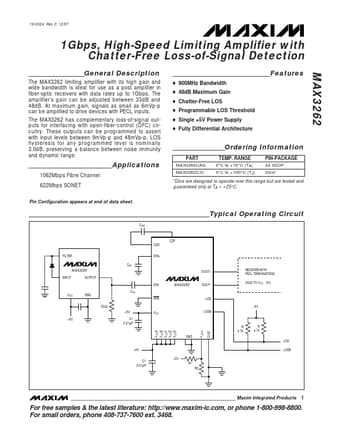

Preview of MAX3262 PDF

Datasheet Details

Part number:

MAX3262

Manufacturer:

Maxim Integrated ↗

File Size:

87.88 KB

Description:

High-speed limiting amplifier.
