MAX3260

1GHz Transimpedance Preamplifier with 25dB Dynamic Range

MAX3260 Features

* o 1GHz Bandwidth o Single 5V Supply o 25dB Dynamic Range o Optimized for TO-Style Header MAX3260 ______________Ordering Information PART MAX3260C/D TJ RANGE 0°C to +100°C PIN-PACKAGE Dice ___________________Chip Topography ________________________Applications High-Speed Fiber Optics 531Mbps and

MAX3260 General Description

The MAX3260 high-speed transimpedance amplifier is ideally suited for Fibre Channel and SDH/SONET applications. An extended dynamic range makes the MAX3260 useful in optical receiver systems with as much as 25dB of input signal range. A DC-restore feedback network prevents amplifier saturation in al.

MAX3260 Datasheet (57.21 KB)

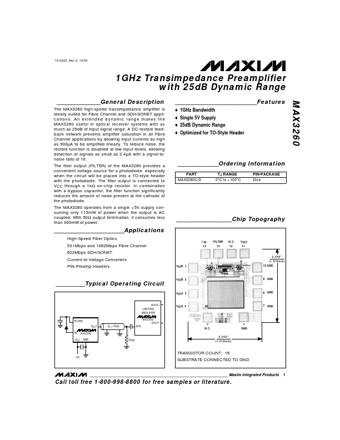

Preview of MAX3260 PDF

Datasheet Details

Part number:

MAX3260

Manufacturer:

Maxim

File Size:

57.21 KB

Description:

1ghz transimpedance preamplifier with 25db dynamic range.
