MAX4549, MAX4548 - Triple 3 x 2 Audio/Video Crosspoint Switches

MAX4549 Description

19-1496; Rev 0; 6/99 MAX4548/MAX4549 Serially Controlled, Triple 3x2 Audio/Video Crosspoint Switches General .
The MAX4548/MAX4549 serial-interface, programmable, triple 3x2 audio/video crosspoint switches are ideal for multimedia applications.

MAX4549 Features

* o Selectable Soft-Switching Mode for “Clickless” Audio Operation o 22Ω Typical On-Resistance (+5V Supply) o 5Ω Typical On-Resistance Matching Between Channels o 2Ω Typical On-Resistance Flatness o Audio Performance -85dB Off-Isolation at 20kHz -85dB Crosstalk at 20kHz 0.07% THD with 600Ω Load o Vide

MAX4549 Applications

* The devices include three crosspoint switch matrices, each containing three inputs and two outputs. To improve off-isolation, each switch matrix has a shunt input and each output is selectively programmable for clickless or regular-mode operation. A selectable set of internal resistive voltage divi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4549, MAX4548. Please refer to the document for exact specifications by model.

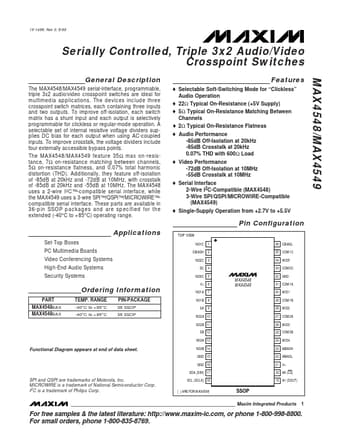

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4549, MAX4548
Manufacturer
Maxim Integrated ↗
File Size
273.33 KB
Datasheet
MAX4548_MaximIntegratedProducts.pdf
Description
Triple 3 x 2 Audio/Video Crosspoint Switches
Note
This datasheet PDF includes multiple part numbers: MAX4549, MAX4548.
Please refer to the document for exact specifications by model.
