MAX4544 Datasheet, Switches, Maxim

MAX4544 Features

• Switches o o o o o o o o o o o o Low RON: 60Ω max (33Ω typ) RON Matching Between Channels: 2Ω max RON Flatness: 6Ω max Guaranteed Charge Injection: 5pC max +2.7V to +12V Single-Supply Operation

PDF File Details

Part number:

MAX4544

Manufacturer:

Maxim

File Size:

229.70kb

Download:

📄 Datasheet

Description:

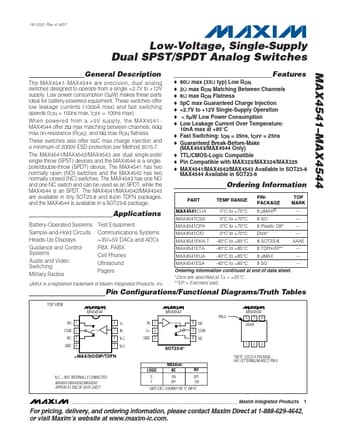

Low-voltage / single-supply dual spst/spdt analog switches. The MAX4541  –MAX4544 are precision, dual analog switches designed to operate from a single +2.7V to +12V supply. Low p

MAX4544 Application

• Applications Battery-Operated Systems Test Equipment Sample-and-Hold Circuits Heads-Up Displays Guidance and Control Systems Audio and Video Switchi
