MAX614

The MAX614 is Dual-Slot PCMCIA Analog Power Controllers designed by Maxim Integrated.

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX614, MAX613
Manufacturer	Maxim Integrated
File Size	100.55 KB
Description	Dual-Slot PCMCIA Analog Power Controllers
Datasheet	MAX613_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX614, MAX613. Please refer to the document for exact specifications by model.

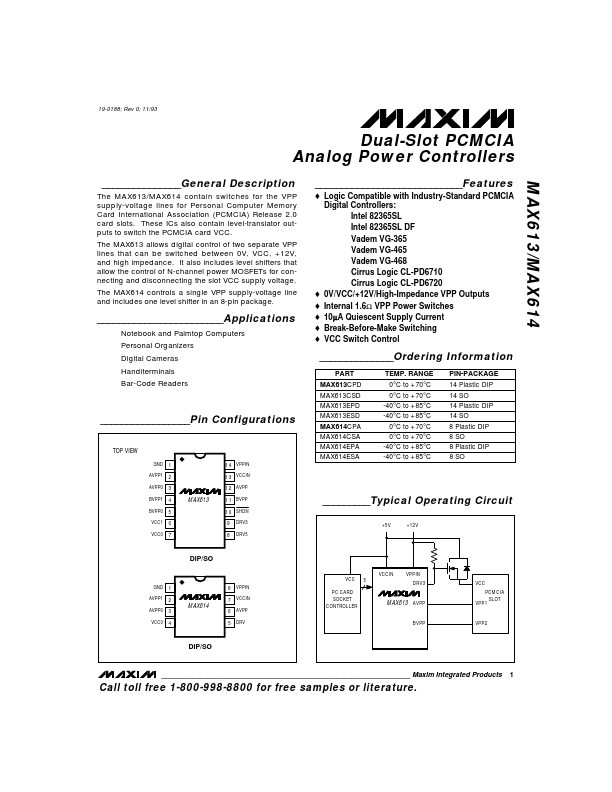

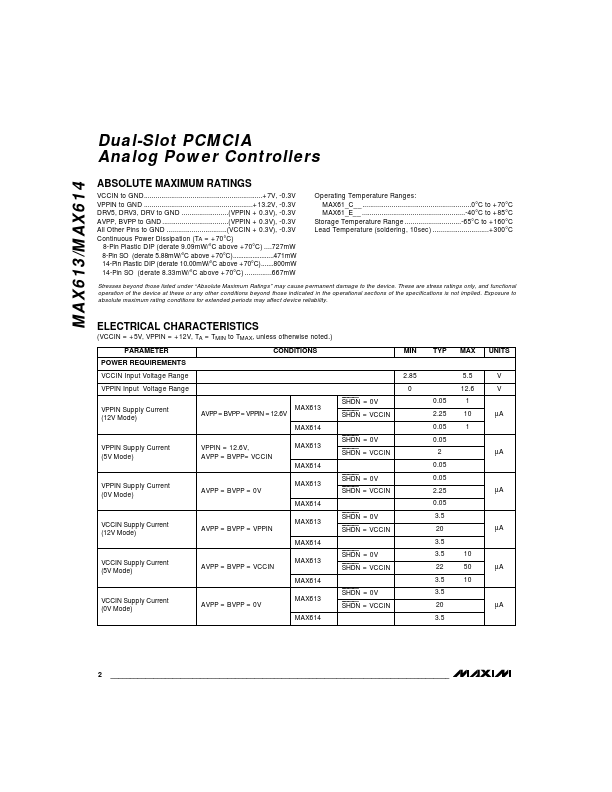

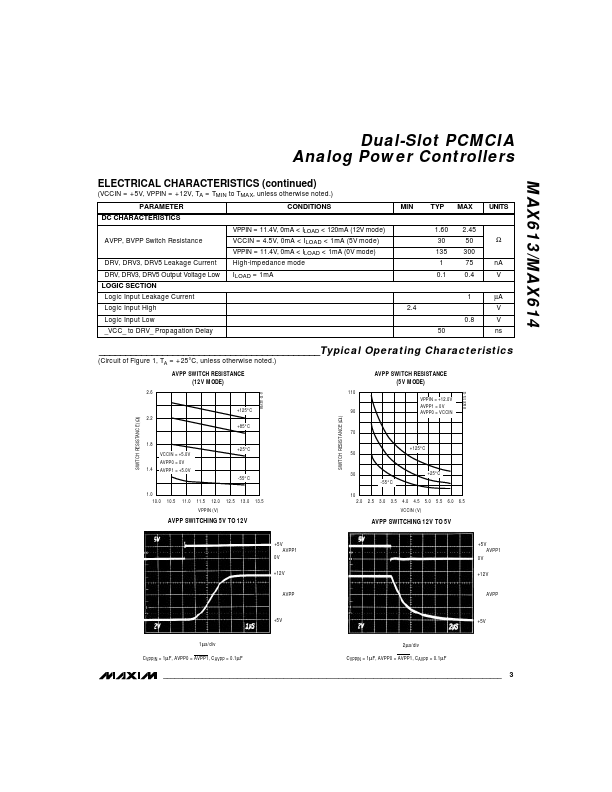

Additional preview pages of the MAX614 datasheet.

Product details

Description

The MAX613/MAX614 contain switches for the VPP supply-voltage lines for Personal Computer Memory Card International Association (PCMCIA) Release 2.0 card slots.

Features

o Logic Compatible with Industry-Standard PCMCIA Digital Controllers: Intel 82365SL Intel 82365SL DF Vadem VG-365 Vadem VG-465 Vadem VG-468 Cirrus Logic CL-PD6710 Cirrus Logic CL-PD6720 o 0V/VCC/+12V/High-Impedance VPP Outputs o Internal 1.6Ω VPP Power Switches o 10mA Quiescent Supply Current o Break-Before-Make Switching o VCC Switch Control ______________Ordering Information PART MAX613CPD MAX613CSD MAX613EPD MAX613ESD MAX614CPA MAX614CSA MAX614EPA MAX614ESA TEMP. RANGE 0°C to +70°C 0°C to.
