MAX6141

The MAX6141 is 3-Terminal Voltage References designed by Maxim Integrated.

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX6141, MAX6145
Manufacturer	Maxim Integrated
File Size	1.13 MB
Description	3-Terminal Voltage References
Datasheet	MAX6145_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX6141, MAX6145. Please refer to the document for exact specifications by model.

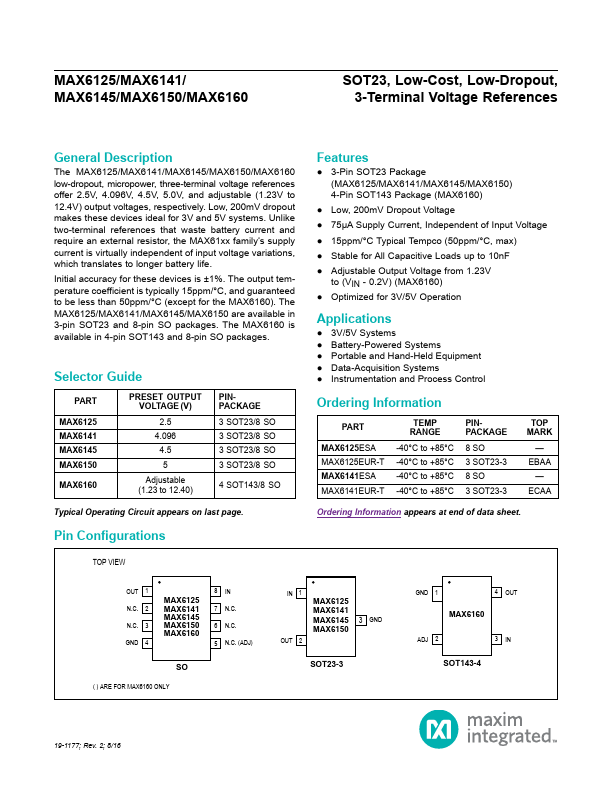

Additional preview pages of the MAX6141 datasheet.

Product details

Description

The MAX6125/MAX6141/MAX6145/MAX6150/MAX6160 low-dropout, micropower, three-terminal voltage references offer 2.5V, 4.096V, 4.5V, 5.0V, and adjustable (1.23V to 12.4V) output voltages, respectively.

Features

3-Pin SOT23 Package (MAX6125/MAX6141/MAX6145/MAX6150) 4-Pin SOT143 Package (MAX6160).
Low, 200mV Dropout Voltage.
75μA Supply Current, Independent of Input Voltage.
15ppm/°C Typical Tempco (50ppm/°C, max).
Stable for All Capacitive Loads up to 10nF.
Adjustable Output Voltage from 1.23V to (VIN - 0.2V) (MAX6160).
Optimized for 3V/5V Operation.
