MAX77950

WPC/PMA Dual Mode Wireless Power Receiver

MAX77950 Features

* the patent-pending PeerPower™ function. In PeerPower mode, the IC operates as a transmitter, enabling power transfer to another peer device through in-band ASK communications. The MAX77950 communicates with an application processor through an I²C serial interface. The status of power transfer and al

MAX77950 General Description

The MAX77950 is an advanced wireless power receiver IC that meets the specification requirements for WPC low-power (v1.2) and PMA SR1 (v2.0) communication protocols. This device operates using near-field magnetic induction when coupled with a WPC or PMA transmitter and provides output power up to 12.

MAX77950 Datasheet (1.15 MB)

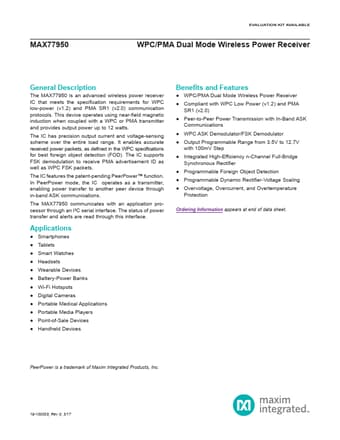

Preview of MAX77950 PDF

Datasheet Details

Part number:

MAX77950

Manufacturer:

Maxim Integrated ↗

File Size:

1.15 MB

Description:

Wpc/pma dual mode wireless power receiver.
