MAX772 - 5V/12V/15V or Adjustable / High-Efficiency / Low IQ / Step-Up DC-DC Controllers

MAX772 Description

19-0202; Rev 2; 11/96 L MANUA ION KIT HEET T A U L EVA TA S WS DA FOLLO 5V/12V/15V or Adjustable, High-Efficiency, Low IQ, Step-Up DC-DC Controllers.
The MAX770. MAX773 step-up switching controllers provide 90% efficiency over a 10mA to 1A load.

MAX772 Features

* o 90% Efficiency for 10mA to 1A Load Currents o Up to 15W Output Power o 110µA Max Supply Current o 5µA Max Shutdown Current o 2V to 16.5V Input Range (MAX770/MAX771/MAX772) o Internal Shunt Regulator for High Input Voltages (MAX773) o Preset or Adjustable Output Voltages MAX770: 5V or Adjustable MA

MAX772 Applications

* Palmtops/Handy-Terminals High-Efficiency DC-DC Converters Battery-Powered Applications Positive LCD-Bias Generators Portable Communicators Flash Memory Programmers Ordering Information continued at end of data sheet.
* Contact factory for dice specifications.
* Contact factory for availa

📥 Download Datasheet

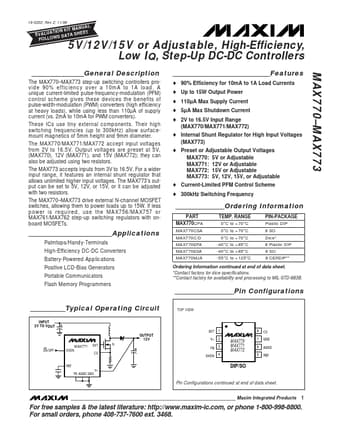

Preview of MAX772 PDF
