MAX77179, MAX77178 - High-Bandwidth LTE/WCDMA PA Power Management

MAX77179 Description

EVALUATION KIT AVAILABLE MAX77178 / MAX77179 High-Bandwidth LTE/WCDMA PA Power Management ICs in a 1.75mm x 1.4mm, 0.4mm Pitch WLP General Descripti.
The MAX77178/MAX77179 step-down converters are optimized for powering the power amplifier (PA) in multimode/multiband handsets for 3G/4G applications.

MAX77179 Features

* include overcurrent and overtemperature protection, and a very low-current (0.1µA, typ) shutdown mode. WiMAX is a registered certification mark and service mark of WiMAX Forum. Wi-Fi is a registered certification mark of Wi-Fi Alliance Corporation. Features S Meet 3G/4G Timing and RF Spectrum Mask

MAX77179 Applications

* such as LTE, WCDMA, as well as other RF PA applications such as Wi-FiM and WiMAXM. The 2.5V to 5.5V input supply range supports both current and future battery chemistries. The MAX77179 uses an analog input driven by an external DAC to control the output voltage linearly for continuous PA power adju

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX77179, MAX77178. Please refer to the document for exact specifications by model.

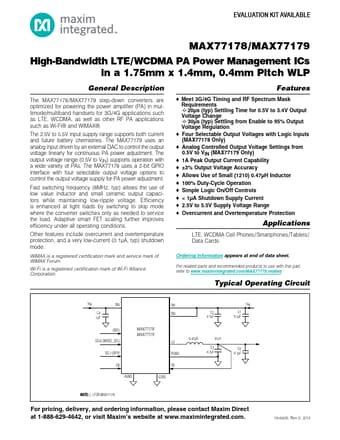

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX77179, MAX77178
Manufacturer
Maxim Integrated ↗
File Size
2.16 MB
Datasheet
MAX77178-MaximIntegrated.pdf
Description
High-Bandwidth LTE/WCDMA PA Power Management
Note
This datasheet PDF includes multiple part numbers: MAX77179, MAX77178.
Please refer to the document for exact specifications by model.
