MAX77596 Buck Converter

The MAX77596 is a small, synchronous buck converter with integrated switches. The device is designed to deliver up to 300mA with input voltages from 3.5V to 24V, while using only 1.1µA quiescent current at no load (fixed-output version). Voltage quality can be monitored by observing the RESET signal.

MAX77596 Features

* Flexible Power for Systems That Require a Wide Input Voltage Range

* VIN Range: 3.5V to 24V

* Up to 300mA Output Current

* Fixed 3.3V or Programmable 1V to 10V Output Voltage

* 98% (Max) Duty Cycle Operation with Low Dropout

* Operates from 5V, 12V, or 2

MAX77596-MaximIntegrated.pdf

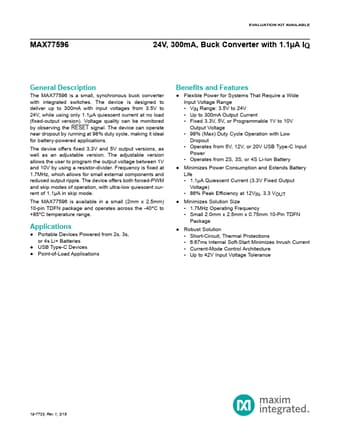

Preview of MAX77596 PDF
