MAX77505

4.6A Switching Current Low IQ Buck Converter

Analog Devices

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Maxim Integrated Products	MAX77505	MAX77505QEVKIT-	EVAL BOARD FOR MAX77505	DigiKey	1	1 units	$131.25	🛒 Buy Now

Download Datasheet (1.46 MB)

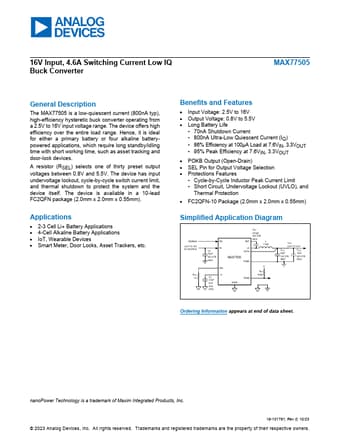

MAX77505 Datasheet Preview — Preview of MAX77505 Datasheet

Datasheet Details

Part number:

MAX77505

Manufacturer:

Analog Devices ↗

File Size:

1.46 MB

Description:

4.6a switching current low iq buck converter.
16V Input, 4.6A Switching Current Low IQ Buck Converter MAX77505 General Description The MAX77505 .
The MAX77505 is a low-quiescent current (800nA typ), high-efficiency hysteretic buck converter opera.

✔ MAX77505 Features

Input Voltage: 2.5V to 16V
Output Voltage: 0.8V to 5.5V
Long Battery Life
70nA Shutdown Current
800nA Ultra-Low Quiescent Current (IQ)
86% Efficiency at 100µA

✔ MAX77505 Application

which require long standby/idling time with short working time, such as asset tracking and door-lock device
