MAX77785 Datasheet - Analog Devices

3.5A 1-Cell Li+ Battery Charger

MAX77785 Features

* High-Efficiency Single-Cell Switching Charger

* Up to 5.5A Charging with MAX77786

* Up to 3.5A Charging with MAX77785

* 90% Buck Efficiency at 4A, 15V Input

* Up to 5.5A Input Current Limit with AICL (MAX77786)

* Up to 3.5A Input Current Limit with A

MAX77785 General Description

The MAX77785/MAX77786 is a high-performance highinput 3.5/5.5A fast charger with Smart Power SelectorTM. The ICs can operate as a reverse boost converter without an additional inductor, allowing the battery to share its power through the charging port, and offer programmable output voltage from 4.50.

MAX77785 Datasheet (3.07 MB)

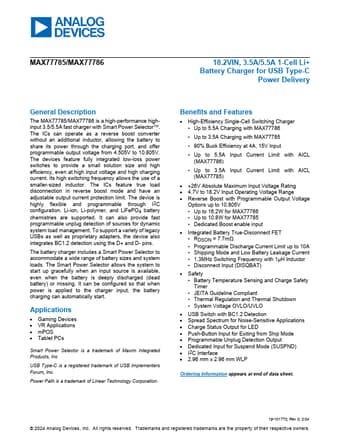

Preview of MAX77785 PDF

Datasheet Details

Part number:

MAX77785

Manufacturer:

Analog Devices ↗

File Size:

3.07 MB

Description:

3.5a 1-cell li+ battery charger.
