MAX77756 Datasheet - Maxim Integrated

500mA Buck Regulator

MAX77756 Features

* Wide Input Power Supply

* 3V to 24V Supply Voltage

* 500mA (max) Output Current

* 1.8V, 3.3V, or 5.0V Factory-Set VOUT with Optional I2C Control: 1.5V to 7.5V in 50mV Steps

* External Feedback Resistor VOUT Option (1V to 99% VSUP)

* Hardware or Soft

MAX77756 General Description

The MAX77756 is a synchronous 500mA step-down DC-DC converter with integrated dual-input power multiplexer (MUX). The converter operates on an input supply as low as 3.0V and as high as 24V. Default output voltage is factory-programmed to either 1.8V, 3.3V, or 5.0V. Output voltage is further adjusta.

MAX77756 Datasheet (970.68 KB)

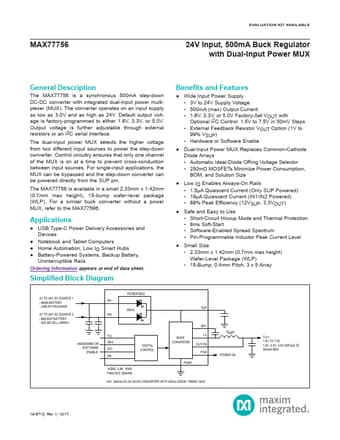

Preview of MAX77756 PDF

Datasheet Details

Part number:

MAX77756

Manufacturer:

Maxim Integrated ↗

File Size:

970.68 KB

Description:

500ma buck regulator.
