MAX77786 5.5A 1-Cell Li+ Battery Charger

The MAX77785/MAX77786 is a high-performance highinput 3.5/5.5A fast charger with Smart Power SelectorTM. The ICs can operate as a reverse boost converter without an additional inductor, allowing the battery to share its power through the charging port, and offer programmable output voltage from 4.50.

MAX77786 Features

* High-Efficiency Single-Cell Switching Charger

* Up to 5.5A Charging with MAX77786

* Up to 3.5A Charging with MAX77785

* 90% Buck Efficiency at 4A, 15V Input

* Up to 5.5A Input Current Limit with AICL (MAX77786)

* Up to 3.5A Input Current Limit with A

MAX77786 Datasheet (3.07 MB)

Preview of MAX77786 PDF

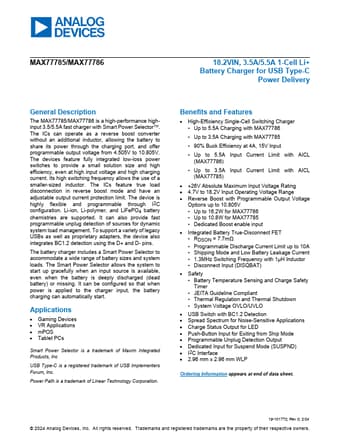

MAX77786 Datasheet Preview Page 2 MAX77786 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX77786

Manufacturer:

Analog Devices ↗

File Size:

3.07 MB

Description:

5.5a 1-cell li+ battery charger.
