MAX77752 Datasheet - Maxim Integrated

MAX77752 Multichannel Integrated Power Management IC

The MAX77752 is a highly-integrated power management solution including three step-down converters, a low-dropout linear regulator, two external regulators enable outputs, two dedicated load switch controllers, and an inrush-current limiter which can be configured as a third load switch controller u.

MAX77752 Features

* Highly Integrated

* Three Buck Regulators

* Integrated High-Accuracy Brownout Comparators

* One Low-Dropout Linear Regulator

* Low-Input Voltage

* Two Dedicated Load Switch Controllers

* One Inrush-Current Limiter, Configurable to be Load Sw

MAX77752-MaximIntegrated.pdf

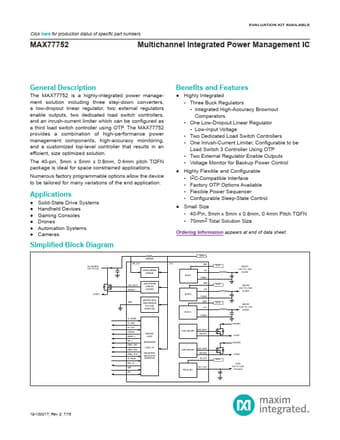

Preview of MAX77752 PDF
MAX77752 Datasheet Preview Page 2 MAX77752 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX77752

Manufacturer:

Maxim Integrated ↗

File Size:

512.29 KB

Description:

Multichannel integrated power management ic.
