MAX810, MAX803 Datasheet - Maxim Integrated

MAX810 3-Pin Microprocessor Reset Circuits

The MAX803/MAX809/MAX810 are microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V powered circuits. .

MAX810 Features

* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages

* Fully Specified Over Temperature

* Available in Three Output Configurations

* Open-Drain RESET Output (MAX803)

* Push-Pull RESET Output (MAX809)

* Push-Pull RESET Output (M

MAX803-MaximIntegrated.pdf

This datasheet PDF includes multiple part numbers: MAX810, MAX803. Please refer to the document for exact specifications by model.

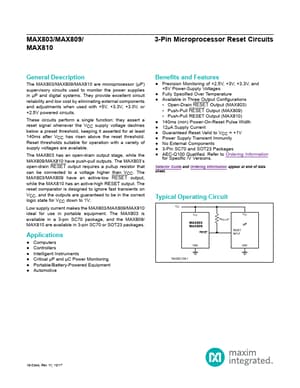

MAX810 Datasheet Preview Page 2 MAX810 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX810, MAX803

Manufacturer:

Maxim Integrated ↗

File Size:

331.38 KB

Description:

3-pin microprocessor reset circuits.

Note:

This datasheet PDF includes multiple part numbers: MAX810, MAX803.
Please refer to the document for exact specifications by model.
