MAX815 1% Accuracy / Low-Power / +3V and +5V uP Supervisory Circuits

MAX815 Description

19-0412; Rev 0; 6/95 ±1% Accuracy, Low-Power, +3V and +5V µP Supervisory Circuits _______________General .
The MAX814/MAX815/MAX816 are high-accuracy microprocessor (µP) supervisory circuits that provide power-on reset, watchdog, and power-fail functions.

MAX815 Features

* ____________________________Features o ±1% Worst-Case Reset Threshold Accuracy o 4.8V, 4.7V, 4.55V, 3.03V, or Adjustable Reset Thresholds o ±1% Low-Line Threshold Accuracy (MAX814) 60mV Above Reset Threshold o 200ms Reset Time Delay o Active-Low RESET Output Active-High RESET Output (MAX814/MAX816

MAX815 Applications

* needing high-accuracy reset thresholds. The RESET output is guaranteed to be in the correct state for VCC down to 1V. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are available for operation with a variety of 3V and 5V supply voltages. A 75µA maximum supply cur

📥 Download Datasheet

Preview of MAX815 PDF

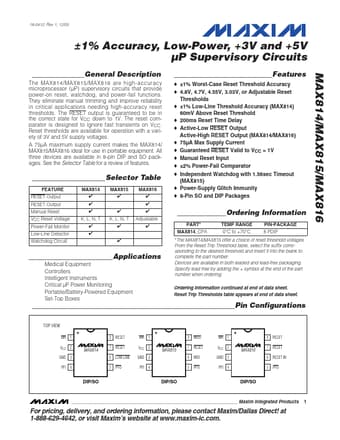

datasheet Preview Page 2 datasheet Preview Page 3
