DG302A, DG301 Datasheet - Maxim

DG302A TTL Compatible CMOS Analog Switches

Maxim’s DG300 *DG303 and DG300A *DG303A CMOS dual and quad analog switches combine low power operation with fast switching times and superior DC and AC switch characteristics. On-resistance is less than 50Ω and is essentially constant over the analog signal range. Device specifications.

DG302A Features

* Ordering Information PART TEMP RANGE PIN-PACKAGE DG300C/D 0°C to +70°C Dice DG300CJ 0°C to +70°C 14 Lead Plastic DIP DG300CWE 0°C to +70°C 16 Lead Wide SO DG300CK 0°C to +70°C 14 Lead CERDIP DG300BWE -25°C to +85°C 16 Lead Wide SO DG300BK -25°C to +85°C 14 Lead CERDIP DG300BA

DG301-Maxim.pdf

This datasheet PDF includes multiple part numbers: DG302A, DG301. Please refer to the document for exact specifications by model.

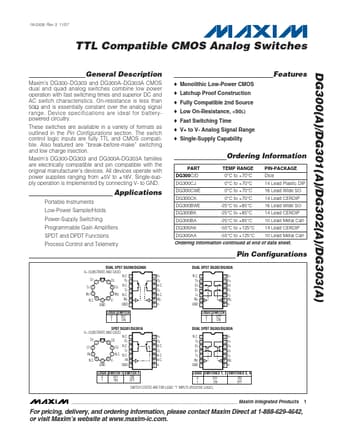

DG302A Datasheet Preview Page 2 DG302A Datasheet Preview Page 3

Datasheet Details

Part number:

DG302A, DG301

Manufacturer:

Maxim

File Size:

331.25 KB

Description:

Ttl compatible cmos analog switches.

Note:

This datasheet PDF includes multiple part numbers: DG302A, DG301.
Please refer to the document for exact specifications by model.
