DG401 - Improved / Dual / High-Speed Analog Switches

DG401 Description

19-4727; Rev 2; 6/99 Improved, Dual, High-Speed Analog Switches _______________General .
Maxim's redesigned DG401/DG403/DG405 analog switches now feature guaranteed low on-resistance matching between switches (2Ω max) and guaranteed on-res.

DG401 Features

* o Plug-In Upgrade for Industry-Standard DG401/DG403/DG405 o Improved rDS(ON) Match Between Channels (2Ω max) o Guaranteed rFLAT(ON) Over Signal Range (3Ω max) o Improved Charge Injection (15pC max) o Improved Off Leakage Current Over Temperature (

DG401 Applications

* Sample-and-Hold Circuits Guidance and Control Systems Communications Systems Battery-Operated Systems Military Radios Test Equipment Heads-Up Displays PBX, PABX Audio Signal Routing Ordering Information continued on last page.
* Contact factory for dice specifications. _____________________Pin

📥 Download Datasheet

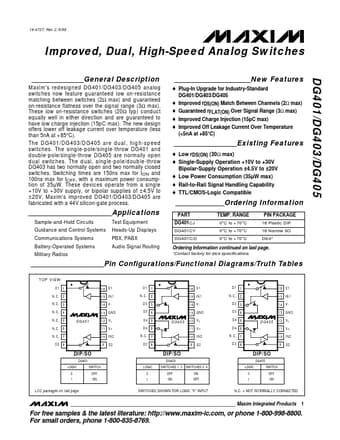

Preview of DG401 PDF
