DG417 - Improved / SPST/SPDT Analog Switches

DG417 Description

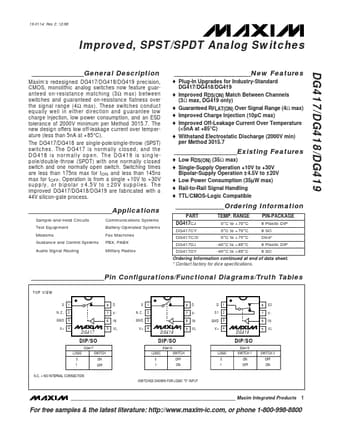

19-0114; Rev 2; 12/96 Improved, SPST/SPDT Analog Switches _______________General .
Maxim’s redesigned DG417/DG418/DG419 precision, CMOS, monolithic analog switches now feature guaranteed on-resistance matching (3 Ω max) between switc.

DG417 Features

* o Plug-In Upgrades for Industry-Standard DG417/DG418/DG419 o Improved RDS(ON) Match Between Channels (3Ω max, DG419 only) o Guaranteed RFLAT(ON) Over Signal Range (4Ω max) o Improved Charge Injection (10pC max) o Improved Off-Leakage Current Over Temperature (

DG417 Applications

* Sample-and-Hold Circuits Test Equipment Modems Guidance and Control Systems Audio Signal Routing Communications Systems Battery-Operated Systems Fax Machines PBX, PABX Military Radios ______________Ordering Information PART DG417CJ DG417CY DG417C/D DG417DJ DG417DY TEMP. RANGE 0°C to +70°C 0°C to +7
