MAX1003

Low-Power / 90Msps / Dual 6-Bit ADC

MAX1003 Features

* o Two Matched 6-Bit ADCs o High Sampling Rate: 90Msps per ADC o Low Power Dissipation: 350mW o Excellent Dynamic Performance: 5.85 ENOB with 20MHz Analog Input 5.7 ENOB with 50MHz Analog Input o ±1/4LSB INL and DNL (typ) o Internal Bandgap Voltage Reference o Internal Oscillator with Overdrive Capab

MAX1003 General Description

The MAX1003 is a dual, 6-bit analog-to-digital converter (ADC) that combines high-speed, low-power operation with a user-selectable input range, an internal reference, and a clock oscillator. The dual parallel ADCs are designed to convert in-phase (I) and quadrature (Q) analog signals into two 6-bit.

MAX1003 Datasheet (115.31 KB)

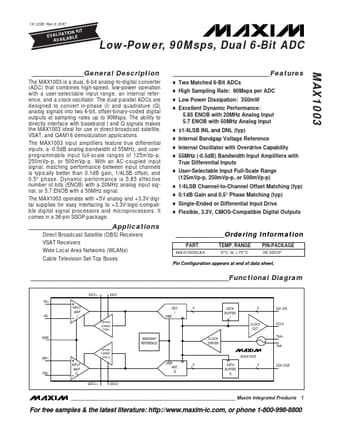

Preview of MAX1003 PDF

Datasheet Details

Part number:

MAX1003

Manufacturer:

Maxim

File Size:

115.31 KB

Description:

Low-power / 90msps / dual 6-bit adc.
