MAX1011 Datasheet, Adc, Maxim

MAX1011 Features

  • Adc o High Sampling Rate: 90Msps o Low Power Dissipation: 215mW o Excellent Dynamic Performance: 5.85 ENOB with 20MHz Analog Input 5.7 ENOB with 50MHz Analog Input o ±1/4LSB INL and DNL (ty

PDF File Details

Part number:

MAX1011

Manufacturer:

Maxim

File Size:

111.92kb

Download:

📄 Datasheet

Description:

Low-power / 90msps / 6-bit adc. Features o High Sampling Rate: 90Msps o Low Power Dissipation: 215mW o Excellent Dynamic Performance: 5.85 ENOB with 20MHz Analog Inp

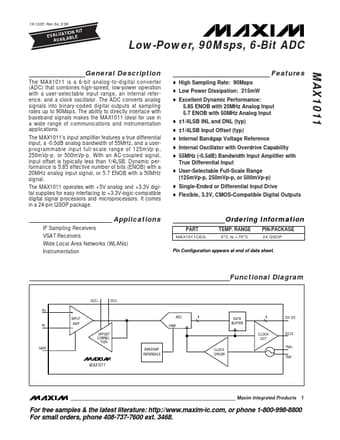

Datasheet Preview: MAX1011 📥 Download PDF (111.92kb)
Page 2 of MAX1011 Page 3 of MAX1011

MAX1011 Application

  • Applications The MAX1011’s input amplifier features a true differential input, a -0.5dB analog bandwidth of 55MHz, and a userprogrammable input ful
