MAX101A Datasheet - Maxim

MAX101A 500Msps / 8-Bit ADC

The MAX101A ECL-compatible, 500Msps, 8-bit analogto-digital converter (ADC) allows accurate digitizing of analog signals from DC to 250MHz (Nyquist frequency). Dual monolithic converters, driven by the track/hold (T/H), operate on opposite clock edges (time interleaved). Designed with Maxim’s propri.

MAX101A Features

* o o o o o o o o o o 500Msps Conversion Rate 7.0 Effective Bits Typical at 250MHz 1.2GHz Analog Input Bandwidth Less than ±1/2LSB INL 50Ω Differential or Single-Ended Inputs ±250mV Input Signal Range Ratiometric Reference Inputs Dual Latched Output Data Paths Low Error Rate, Less than 10-15 Metastabl

MAX101A_MaximIntegratedProducts.pdf

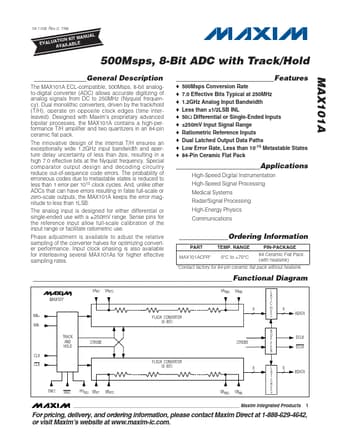

Preview of MAX101A PDF
MAX101A Datasheet Preview Page 2 MAX101A Datasheet Preview Page 3

Datasheet Details

Part number:

MAX101A

Manufacturer:

Maxim

File Size:

176.36 KB

Description:

500msps / 8-bit adc.
