MAX122 - 500ksps / 12-Bit ADCs

Name: MAX122
SKU: MAX122-447036

Maxim

📥 Download Datasheet

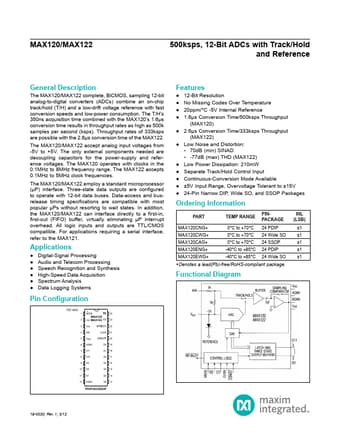

MAX122 Datasheet Preview — Preview of MAX122 PDF

Datasheet Details

Part number	MAX122
Manufacturer	Maxim
File Size	1.88 MB
Description	500ksps / 12-Bit ADCs
Datasheet	MAX122_MaximIntegratedProducts.pdf

MAX122 Product details

Description

The MAX120/MAX122 complete, BiCMOS, sampling 12-bit analog-to-digital converters (ADCs) combine an on-chip track/hold (T/H) and a low-drift voltage reference with fast conversion speeds and low-power consumption.

Features

12-Bit Resolution.
No Missing Codes Over Temperature.
20ppm/°C -5V Internal Reference.
1.6µs Conversion Time/500ksps Throughput (MAX120).
2.6µs Conversion Time/333ksps Throughput (MAX122).
Low Noise and Distortion:.
70dB (min) SINAD.
-77dB (max) THD (MAX122).
Low Power Dissipation: 210mW.
Separate Track/Hold Control Input.
Continuous-Conversion Mode Available.
±5V Input Range, O.
