MAX1227 - 12-Bit 300ksps ADCs

Maxim

Datasheet Details

Part number	MAX1227
Manufacturer	Maxim
File Size	218.43 KB
Description	12-Bit 300ksps ADCs
Datasheet	MAX1227_MaximIntegratedProducts.pdf

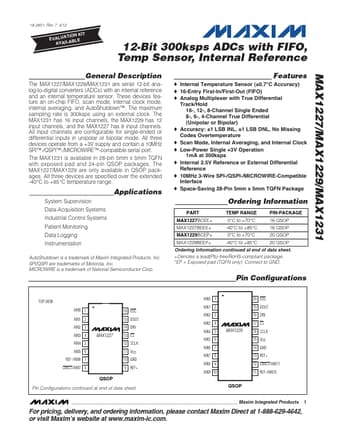

The MAX1227/MAX1229/MAX1231 are serial 12-bit analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor.

o Internal Temperature Sensor (±0.7°C Accuracy) o 16-Entry First-In/First-Out (FIFO) o Analog Multiplexer with True Differential Track/Hold 16-, 12-, 8-Channel Single Ended 8-, 6-, 4-Channel True Differential (Unipolar or Bipolar) o Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Overtemperature o Scan Mode, Internal Averaging, and Internal Clock o Low-Power Single +3V Operation 1mA at 300ksps o Internal 2.5V Reference or External Differential Reference o 10MHz 3-Wire SPI-/QSPI-/.
