MAX1245 Datasheet - Maxim

+2.375V / Low-Power / 8-Channel / Serial 12-Bit ADC

MAX1245 Features

* o Single +2.375V to +3.3V Operation o 8-Channel Single-Ended or 4-Channel Differential Analog Inputs o Low Power: 0.8mA (100ksps) 10µA (1ksps) 1µA (power-down mode) o Internal Track/Hold, 100kHz Sampling Rate o SPI/QSPI/Microwire/TMS320-Compatible 4-Wire Serial Interface o Software-Configurable Unip

MAX1245 General Description

The MAX1245 12-bit data-acquisition system combines an 8-channel multiplexer, high-bandwidth track/hold, and serial interface with high conversion speed and ultra-low power consumption. It operates from a single +2.375V to +3.3V supply, and its analog inputs are software configurable for unipolar/bi.

MAX1245 Datasheet (327.80 KB)

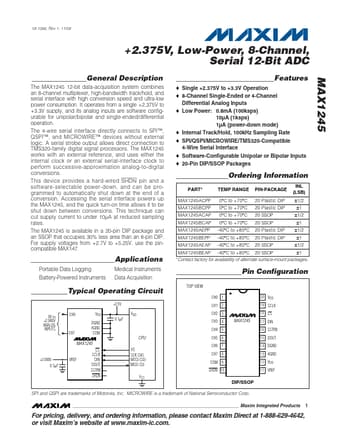

MAX1245 Datasheet Preview — Preview of MAX1245 PDF

Datasheet Details

Part number:

MAX1245

Manufacturer:

Maxim

File Size:

327.80 KB

Description:

+2.375v / low-power / 8-channel / serial 12-bit adc.
