MAX1703 - 1-Cell to 3-Cell / High-Power 1.5A / Low-Noise / Step-Up DC-DC Converter

MAX1703 Description

19-1336; Rev 2; 11/98 NUAL KIT MA ATION EET H S A EVALU T WS DA FOLLO 1-Cell to 3-Cell, High-Power (1.5A), Low-Noise, Step-Up DC-DC Converter ______.
The MAX1703 is a high-efficiency, low-noise, step-up DC-DC converter intended for use in battery-powered wireless applications.

MAX1703 Features

* o Up to 95% Efficiency o Up to 1.5A Output o Fixed 5V or Adjustable Step-Up Output (2.5V to 5.5V) o 0.7V to 5.5V Input Range o Low-Power Mode (300µW) o Low-Noise, Constant-Frequency Mode (300kHz) o Synchronizable Switching Frequency (200kHz to 400kHz) o 1µA Logic-Controlled Shutdown o Power-Good Com

MAX1703 Applications

* It uses a synchronous-rectified pulse-width-modulation (PWM) boost topology to generate a 2.5V to 5.5V output from battery inputs, such as one to three NiCd/NiMH cells or one Li-Ion cell. The device includes a 2A, 75m Ω , N-channel MOSFET switch and a 140mΩ, P-channel synchronous rectifier. With it

📥 Download Datasheet

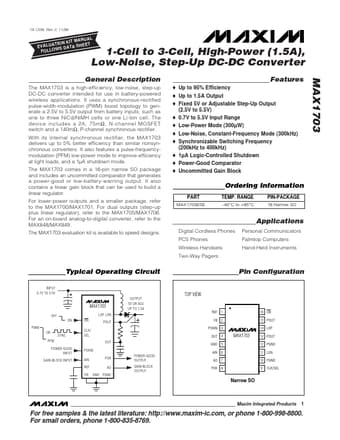

Preview of MAX1703 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX1703
Manufacturer
Maxim
File Size
273.62 KB
Datasheet
MAX1703_MaximIntegratedProducts.pdf
Description
1-Cell to 3-Cell / High-Power 1.5A / Low-Noise / Step-Up DC-DC Converter
