MAX1705, 1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters

19-1198; Rev 0; 4/97 1- to 3-Cell, High-Current, Low-Noise, Step-Up DC-DC Converters with Linear Regulator _______________General .
The MAX1705/MAX1706 are high-efficiency, low-noise, step-up DC-DC converters with an auxiliary linearregulator output.

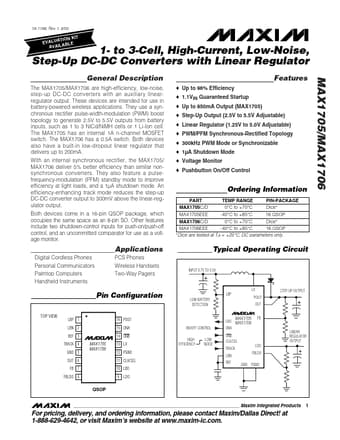

datasheet Preview Page 1 from Datasheet4u.com

MAX1705_MaximIntegratedProducts.pdf

MAX1705 Datasheet Preview — Preview of MAX1705 PDF

Datasheet Details

Part number:

MAX1705

Manufacturer:

Maxim

File Size:

256.12 KB

Description:

1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters

Features

* include two shutdown-control inputs for push-on/push-off control, and an uncommitted comparator for use as a voltage monitor. ANUAL N KIT M IO T A U EVAL BLE AVAILA ____________________________Features o Up to 96% Efficiency o 1.1VIN Guaranteed Start-Up o Up to 850mA Output (MAX1705) o Step-Up Out

Applications

* They use a synchronous rectifier pulse-width-modulation (PWM) boost topology to generate 2.5V to 5.5V outputs from battery inputs, such as 1 to 3 NiCd/NiMH cells or 1 Li-Ion cell. The MAX1705 has an internal 1A N-channel MOSFET switch. The MAX1706 has a 0.5A switch. Both devices also have a built-i
