MAX17058

1-Cell/2-Cell Fuel Gauge

MAX17058 Features

* MAX17058: 1 Cell, MAX17059: 2 Cells

* Precision ±7.5mV/Cell Voltage Measurement

* ModelGauge Algorithm

* Provides Accurate State-of-Charge

* Compensates for Temperature/Load Variation

* Does Not Accumulate Errors, Unlike Coulomb Counters

MAX17058 General Description

The MAX17058/MAX17059 ICs are tiny fuel gauges for lithium-ion (Li+) batteries in handheld and portable equipment. The MAX17058 operates with a single Li+ cell and the MAX17059 with two Li+ cells in series. The ICs use the sophisticated Li+ battery-modeling algorithm ModelGauge™ to track the battery.

MAX17058 Datasheet (1.13 MB)

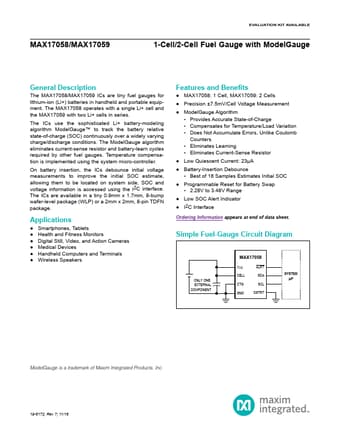

Preview of MAX17058 PDF

Datasheet Details

Part number:

MAX17058

Manufacturer:

Maxim Integrated ↗

File Size:

1.13 MB

Description:

1-cell/2-cell fuel gauge.
