MAX17059, MAX17058 - 1-Cell/2-Cell Fuel Gauge

MAX17059 Description

MAX17058/MAX17059 EVALUATION KIT AVAILABLE 1-Cell/2-Cell Fuel Gauge with ModelGauge General .
The MAX17058/MAX17059 ICs are tiny fuel gauges for lithium-ion (Li+) batteries in handheld and portable equipment.

MAX17059 Features

* MAX17058: 1 Cell, MAX17059: 2 Cells
* Precision ±7.5mV/Cell Voltage Measurement
* ModelGauge Algorithm
* Provides Accurate State-of-Charge
* Compensates for Temperature/Load Variation
* Does Not Accumulate Errors, Unlike Coulomb Counters

MAX17059 Applications

* Smartphones, Tablets
* Health and Fitness Monitors
* Digital Still, Video, and Action Cameras
* Medical Devices
* Handheld Computers and Terminals

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX17059, MAX17058. Please refer to the document for exact specifications by model.

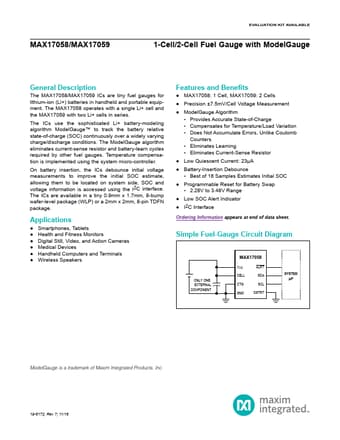

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX17059, MAX17058
Manufacturer
Maxim Integrated ↗
File Size
1.13 MB
Datasheet
MAX17058-MaximIntegrated.pdf
Description
1-Cell/2-Cell Fuel Gauge
Note
This datasheet PDF includes multiple part numbers: MAX17059, MAX17058.
Please refer to the document for exact specifications by model.
