MAX1839 - Wide Brightness Range CCFL Backlight Controllers

MAX1839 Description

19-1755; Rev 1; 3/01 Wide Brightness Range CCFL Backlight Controllers General .
The MAX1739/MAX1839 fully integrated controllers are optimized to drive cold-cathode fluorescent lamps (CCFLs) using the industry-proven Royer oscilla.

MAX1839 Applications

* Notebook/Laptop Computers Car Navigation Displays LCD Monitors Point-of-Sale Terminals Portable Display Electronics TOP VIEW REF 1 MINDAC 2 CCI 3 CCV 4 SH/SUS 5 CRF/SDA 6 CTL/SCL 7 MODE 8 CSAV 9 CTFB 10 †Patent pending Pin Configuration 20 BATT 19 DH 18 LX 17 BST MAX1739 16 VL 15 GND 14 CS 13 DL1

📥 Download Datasheet

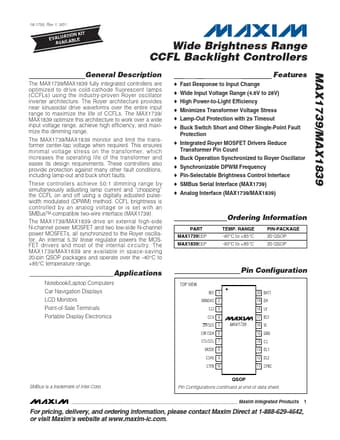

Preview of MAX1839 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX1839
Manufacturer
Maxim
File Size
302.81 KB
Datasheet
MAX1839_MaximIntegratedProducts.pdf
Description
Wide Brightness Range CCFL Backlight Controllers
