MAX2821

2.4GHz 802.11b Zero-IF Transceivers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Maxim Integrated Products MAX2821ETM-T IC RF TXRX WIFI 48TQFN DigiKey 0 2500 units
$5.62

MAX2821 Datasheet (591.72 KB)

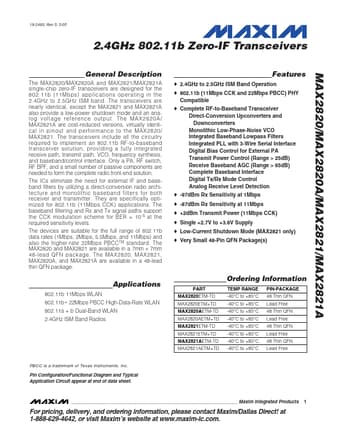

Preview of MAX2821 PDF Datasheet

Datasheet Details

Part number:

MAX2821

Manufacturer:

Maxim

File Size:

591.72 KB

Description:

2.4ghz 802.11b zero-if transceivers.

MAX2821 General Description

The MAX2820/MAX2820A and MAX2821/MAX2821A single-chip zero-IF transceivers are designed for the 802.11b (11Mbps) applications operating in the 2.4GHz to 2.5GHz ISM band. The transceivers are nearly identical, except the MAX2821 and MAX2821A also provide a low-power shutdown mode and an analog voltag.
