MAX2822 - 2.4 Ghz Zero-IF Transceiver

MAX2822 Description

19-2884; Rev 0; 7/03 KIT ATION EVALU E L B A IL AVA 2.4GHz 802.11b Zero-IF Transceiver with Integrated PA and Tx/Rx Switch General .
Features. 2. 802. Integrated +17dBm PA.

MAX2822 Features

* 2.4GHz to 2.5GHz ISM Band Operation
* 802.11b (11Mbps CCK and 22Mbps PBCC) PHY Compatible
* Integrated +17dBm PA
* Integrated PA Power Detector
* Integrated Transmit/Receive Switch
* Complete RF-to-Baseband Transceiver Direct Up/Down Conversion Monol

MAX2822 Applications

* operating in the 2.4GHz to 2.5GHz ISM band. The transceiver includes all the circuitry required to implement an 802.11b RF-to-baseband transceiver solution, including the power amplifier, transmit/receive switch, and 50Ω matching. The fully integrated receive path, transmit path, VCO, frequency synt

📥 Download Datasheet

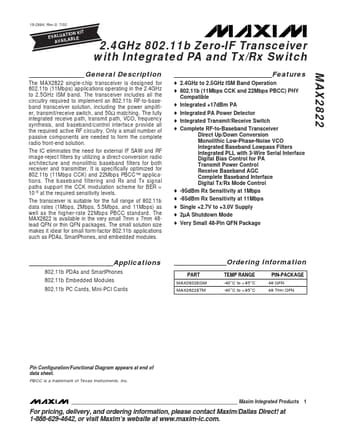

Preview of MAX2822 PDF
