MAX3280E Datasheet - Maxim

SOT23 RS-485/RS-422 True Fail-Safe Receivers

MAX3280E Features

* a voltage logic pin that allows compatibility with low-voltage logic levels, as in digital FPGAs/ASICs. On the MAX3284E, the voltage threshold for a logic high is user-defined by setting VL in the range from 1.65V to VCC. The MAX3284E is also offered in a 6-pin SOT23 package. Applications

MAX3280E General Description

The MAX3280E/MAX3281E/MAX3283E/MAX3284E are single receivers designed for RS-485 and RS-422 communication. These devices guarantee data rates up to 52Mbps, even with a 3V power supply. Excellent propagation delay (15ns max) and package-to-package skew time (8ns max) make these devices ideal for mult.

MAX3280E Datasheet (485.04 KB)

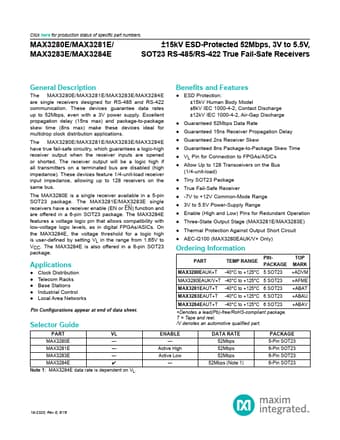

Preview of MAX3280E PDF

Datasheet Details

Part number:

MAX3280E

Manufacturer:

Maxim

File Size:

485.04 KB

Description:

Sot23 rs-485/rs-422 true fail-safe receivers.
