MAX3283E Datasheet - Maxim

MAX3283E - SOT23 RS-485/RS-422 True Fail-Safe Receivers

The MAX3280E/MAX3281E/MAX3283E/MAX3284E are single receivers designed for RS-485 and RS-422 communication.

These devices guarantee data rates up to 52Mbps, even with a 3V power supply.

Excellent propagation delay (15ns max) and package-to-package skew time (8ns max) make these devices ideal for mult

MAX3283E Features

* a voltage logic pin that allows compatibility with low-voltage logic levels, as in digital FPGAs/ASICs. On the MAX3284E, the voltage threshold for a logic high is user-defined by setting VL in the range from 1.65V to VCC. The MAX3284E is also offered in a 6-pin SOT23 package. Applications

MAX3283E_MaximIntegratedProducts.pdf

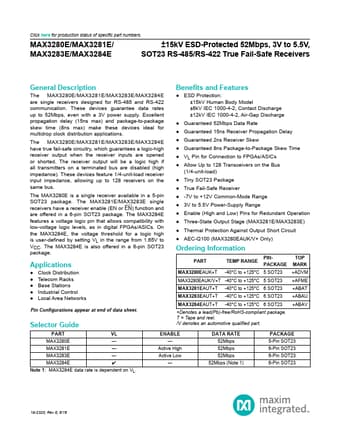

Preview of MAX3283E PDF
MAX3283E Datasheet Preview Page 2 MAX3283E Datasheet Preview Page 3

Datasheet Details

Part number:

MAX3283E

Manufacturer:

Maxim

File Size:

474.59 KB

Description:

Sot23 rs-485/rs-422 true fail-safe receivers.
