MAX3461 +5V / Fail-Safe / 20Mbps / Profibus RS-485/ RS-422 Transceivers

The MAX3460 *MAX3464 are high-speed differential bus transceivers for RS-485 and RS-422 communications. They are designed to meet TIA/EIA-422-B, TIA/EIA-485-A, V.11, and X.27 standards. The transceiver complies with the Profibus specification providing +2.1V output level with a 54Ω load, 20Mb.

MAX3461 Features

* o Recommended for Profibus Applications MAX3460

* MAX3464 Applications High-Speed RS-485 Communications High-Speed RS-422 Communications Level Translators Industrial-Control Local Area Networks Profibus Applications PART MAX3460CSD MAX3460CPD MAX3460ESD MAX3460EPD Ordering Information TEMP

MAX-3460.pdf

This datasheet PDF includes multiple part numbers: MAX3461, MAX. Please refer to the document for exact specifications by model.

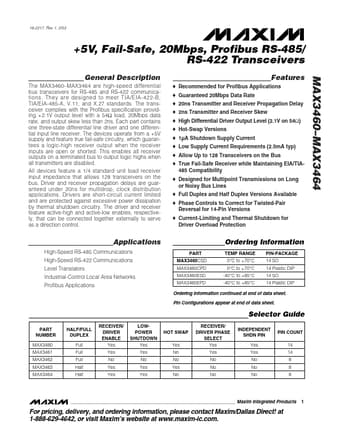

MAX3461 Datasheet Preview Page 2 MAX3461 Datasheet Preview Page 3
