MAX3747A Datasheet, Amplifiers, Maxim

MAX3747A Features

• Amplifiers
• Pin Compatible with Micrel SY88993V MAX3747/MAX3747A Ordering Information PART TEMP RANGE -40°C to +85°C -40°C to +85°C PINPACKAGE 10 µMAX 10 µMAX PKG CODE U10C-4 U10C-4 Ap

PDF File Details

Part number:

MAX3747A

Manufacturer:

Maxim

File Size:

302.40kb

Download:

📄 Datasheet

Description:

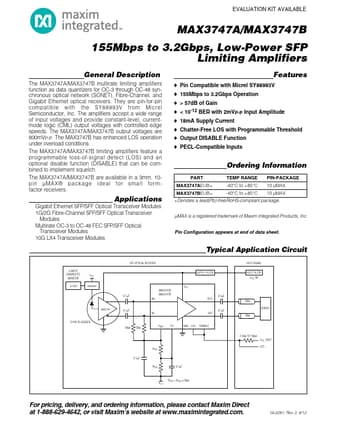

Low-power sfp limiting amplifiers. The MAX3747/MAX3747A multirate limiting amplifiers function as data quantizers for OC-3 through OC-48 synchronous optical network (SO

MAX3747A Application

• Applications Gigabit Ethernet SFP/SFF Optical Transceiver Modules 1G/2G Fibre-Channel SFP/SFF Optical Transceiver Modules Multirate OC-3 to OC-48 FE
