MAX3736

SFP Laser Driver

MAX3736 Features

* Fully Compatible with SFP and SFF-8472 Specifications

* Programmable Modulation Current from 5mA to 60mA (DC-Coupled)

* Programmable Modulation Current from 5mA to 85mA (AC-Coupled)

* Programmable Bias Current from 1mA to 100mA

* 56ps Edge Transition Times

MAX3736 General Description

The MAX3736 is a compact, +3.3V multirate laser driver for SFP/SFF applications up to 3.2Gbps. The device accepts differential data and provides bias and modulation currents for driving a laser. DC-coupling to the laser allows for multirate applications, and reduces the number of external components.

MAX3736 Datasheet (282.11 KB)

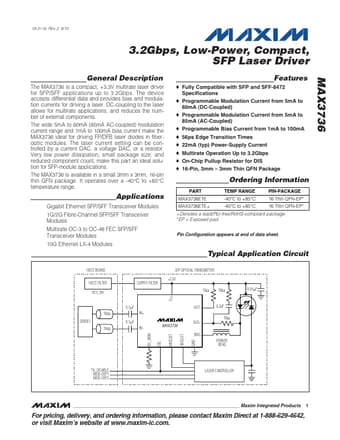

Preview of MAX3736 PDF
