MAX3737 - Multirate Laser Driver

MAX3737 Description

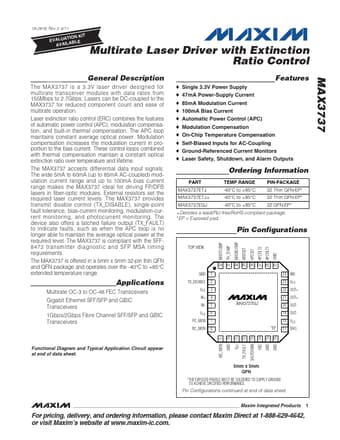

19-2818; Rev 1; 8/03 KIT ATION EVALU E L B A AVAIL Multirate Laser Driver with Extinction Ratio Control General .
Features o Single +3.

MAX3737 Features

* o Single +3.3V Power Supply o 47mA Power-Supply Current o 85mA Modulation Current o 100mA Bias Current o Automatic Power Control (APC) o Modulation Compensation o On-Chip Temperature Compensation o Self-Biased Inputs for AC-Coupling o Ground-Referenced Current Monitors o Laser Safety, Shutdown, and

MAX3737 Applications

* Multirate OC-3 to OC-48 FEC Transceivers Gigabit Ethernet SFF/SFP and GBIC Transceivers 1Gbps/2Gbps Fibre Channel SFF/SFP and GBIC Transceivers OUT+ OUT+ OUTOUTVCC IN+ INVCC MAX3737EGJ 20 19 18 17 PC_MON BC_MON BIAS GND VCC MC_MON TX_FAULT Functional Diagram and Typical Application Circui
