MAX3805 Datasheet - Maxim

MAX3805 10.7Gbps Adaptive Receive Equalizer

The MAX3805 is designed to provide up to 30in (0.75m) reach on 6-mil differential FR-4 transmission line, or up to 24ft (8m) on RG-188A/U type coaxial cable, for PRBS data from 9.95Gbps to 10.7Gbps. The MAX3805 adaptive equalizer reduces intersymbol interference, resulting in 20ps residual jitter af.

MAX3805 Features

* MAX3805 Applications OC-192, 10GbE Switches and Routers OC-192, 10GbE Serial Modules High-Speed Signal Distribution PART MAX3805ETE Ordering Information TEMP RANGE PINPACKAGE PACKAGE CODE T1633F-3 -40°C to +85°C 16 Thin QFN Pin Configuration appears at end of data sheet. Typical Operating Circ

MAX3805_MaximIntegratedProducts.pdf

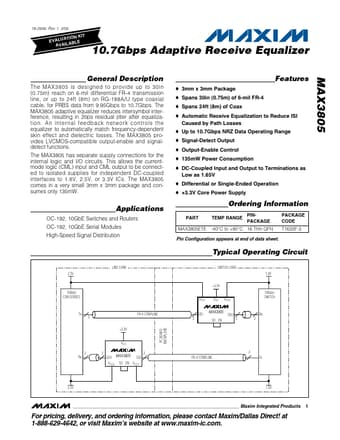

Preview of MAX3805 PDF
MAX3805 Datasheet Preview Page 2 MAX3805 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX3805

Manufacturer:

Maxim

File Size:

219.31 KB

Description:

10.7gbps adaptive receive equalizer.
