MAX3814 - DVI/HDMI TMDS FR-4 and Cable Equalizer/Driver

Datasheet Summary

Description

The MAX3814 TMDS® EQ/driver IC compensates for FR-4 and cable losses up to the DVI/HDMI transmit connector and provides a fully compliant DVI/HDMI TMDS output.

Features

  • Equalizes FR-4 Board Microstrip and Cable HF Losses Up to 15dB at 825MHz for Operation at 0.25Gbps to 1.65Gbps.
  • Compatible with HDMI 1.3.
  • Less Than 0.2UIP-P Residual Jitter at 1.65Gbps for 0 to 15dB Channel Loss at 825MHz.
  • Input Terminations: 50Ω (Each Side to VCC) ±10%.
  • Output of Driver is a Fully DVI/HDMI TMDSCompatible Cable Driver.
  • Output Amplitude: 1.05VP-P Differential.
  • Enable Pin to Select Normal Operation or PowerDown Mode.

📥 Download Datasheet

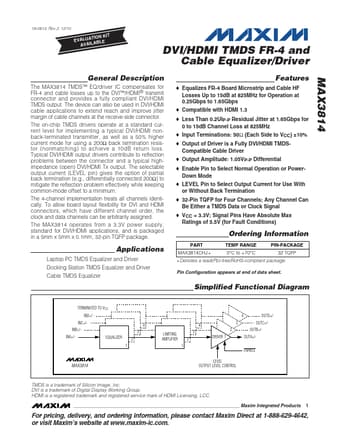

Datasheet preview – MAX3814

Datasheet Details

Part number MAX3814
Manufacturer Maxim Integrated Products
File Size 472.44 KB
Description DVI/HDMI TMDS FR-4 and Cable Equalizer/Driver
Datasheet download datasheet MAX3814 Datasheet
Additional preview pages of the MAX3814 datasheet.

📁 Similar Datasheet

  • MAX381 - Precision / Low-Voltage Analog Switches (Maxim)
  • MAX3800 - 3.2Gbps Adaptive Equalizer and Cable Driver (Maxim)
  • MAX3801 - 3.2Gbps Adaptive Equalizer (Maxim Integrated)
  • MAX3802 - 3.2Gbps Quad Adaptive Cable Equalizer (Maxim)
  • MAX3803 - DC-Coupled / UCSP 3.125Gbps Equalizer (Maxim)
  • MAX3804 - 12.5Gbps Settable Receive Equalizer (Maxim)
  • MAX3805 - 10.7Gbps Adaptive Receive Equalizer (Maxim)
  • MAX382 - Low-Voltage / 8-Channel/Dual 4-Channel Multiplexers with Latchable Inputs (Maxim)
  • MAX3825 - 2.5Gbps Quad Transimpedance Amplifier (Maxim Integrated)
  • MAX383 - Precision / Low-Voltage Analog Switches (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX3815 - TMDS Digital Video Equalizer
  • MAX3815A - TMDS Digital Video Equalizer
  • MAX3806 - Receiver
  • MAX3841 - CML 2 x 2 Crosspoint Switch
  • MAX3845 - DVI/HDMI 2:4 TMDS Fanout Switch and Cable Driver
  • MAX3863 - 2.7Gbps Laser Driver
  • MAX3875A - Clock Recovery and Data Retiming IC
  • MAX3881 - SDH/SONET 1:16 Deserializer

Full PDF Text Transcription

Click to expand full text
19-0813; Rev 0; 5/07 KIT ATION EVALU E L B AVAILA www.DataSheet4U.com DVI/HDMI TMDS FR-4 and Cable Equalizer/Driver Features ♦ Equalizes FR-4 Board Microstrip and Cable HF Losses Up to 15dB at 825MHz for Operation at 0.25Gbps to 1.65Gbps ♦ Compatible with HDMI 1.3 ♦ Less Than 0.2UIP-P Residual Jitter at 1.65Gbps for 0 to 15dB Channel Loss at 825MHz ♦ Input Terminations: 50Ω (Each Side to VCC) ±10% ♦ Output of Driver is a Fully DVI/HDMI TMDSCompatible Cable Driver ♦ Output Amplitude: 1.05VP-P Differential ♦ Enable Pin to Select Normal Operation or PowerDown Mode ♦ LEVEL Pin to Select Output Current for Use With or Without Back Termination ♦ 32-Pin TQFP for Four Channels; Any Channel Can Be Either a TMDS Data or Clock Signal ♦ VCC = 3.3V; Signal Pins Have Absolute Max Ratings of 5.
