MAX4210 - High-Side Power and Current Monitors

Datasheet Summary

Features

  • Real-Time Current and Power Monitoring ±1.5% (max) Current-Sense Accuracy ±1.5% (max) Power-Sense Accuracy Two Uncommitted Comparators (MAX4211) 1.21V Reference Output (MAX4211) Three Current/Power Gain Options 100mV/150mV Current-Sense Full-Scale Voltage +4V to +28V Input Source Voltage Range +2.7V to +5.5V Power-Supply Voltage Range Low Supply Current: 380µA (MAX4210) 220kHz.

📥 Download Datasheet

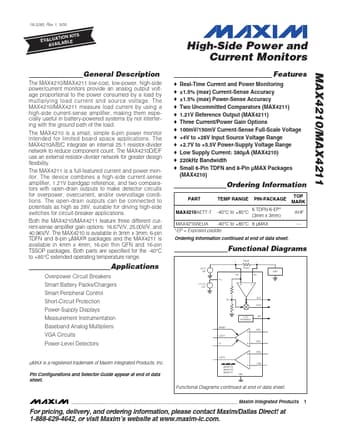

Datasheet preview – MAX4210

Datasheet Details

Part number MAX4210
Manufacturer Maxim
File Size 664.05 KB
Description High-Side Power and Current Monitors
Datasheet download datasheet MAX4210 Datasheet
Additional preview pages of the MAX4210 datasheet.

📁 Similar Datasheet

  • MAX4200 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4201 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4202 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4203 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4204 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4205 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4206 - Precision Transimpedance Logarithmic Amplifier (Maxim Integrated)
  • MAX4208 - Precision Instrumentation Amplifiers (Maxim Integrated Products)
  • MAX4209 - Precision Instrumentation Amplifiers (Maxim Integrated Products)
  • MAX4230 - Rail-to-Rail I/O Op Amps (Maxim Integrated)
Other Datasheets by Maxim
  • MAX4211 - High-Side Power and Current Monitors
  • MAX4212 - Miniature / 300MHz / Single-Supply / Rail-to-Rail Op Amps
  • MAX4213 - Rail-to-Rail Op Amps
  • MAX4214 - Rail-to-Rail Buffers
  • MAX4215 - Rail-to-Rail Buffers
  • MAX4216 - Rail-to-Rail Op Amps
  • MAX4217 - Rail-to-Rail Buffers
  • MAX4218 - Rail-to-Rail Op Amps

Full PDF Text Transcription

Click to expand full text
19-3285; Rev 0; 6/04 KITS ATION EVALU ABLE AVAIL High-Side Power and Current Monitors General Description Features ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ Real-Time Current and Power Monitoring ±1.5% (max) Current-Sense Accuracy ±1.5% (max) Power-Sense Accuracy Two Uncommitted Comparators (MAX4211) 1.21V Reference Output (MAX4211) Three Current/Power Gain Options 100mV/150mV Current-Sense Full-Scale Voltage +4V to +28V Input Source Voltage Range +2.7V to +5.5V Power-Supply Voltage Range Low Supply Current: 380µA (MAX4210) 220kHz Bandwidth Small 6-Pin TDFN and 8-Pin µMAX Packages (MAX4210) MAX4210/MAX4211 The MAX4210/MAX4211 low-cost, low-power, high-side power/current monitors provide an analog output voltage proportional to the power consumed by a load by multiplying load current and source voltage.
