MAX4214, Rail-to-Rail Buffers

19-4754; Rev 0; 12/97 High-Speed, Single-Supply, Gain of +2, Closed-Loop, Rail-to-Rail Buffers with Enable _________________General .
The MAX4214/MAX4215/MAX4217/MAX4219/MAX4222 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current driv.

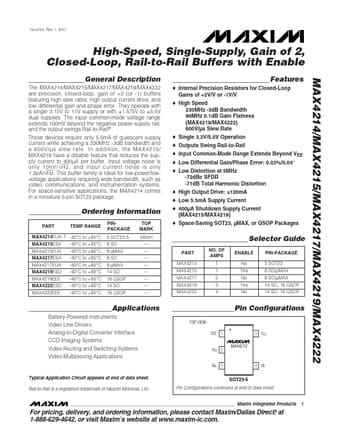

datasheet Preview Page 1 from Datasheet4u.com

MAX4214_MaximIntegratedProducts.pdf

MAX4214 Datasheet Preview — Preview of MAX4214 PDF

Datasheet Details

Part number:

MAX4214

Manufacturer:

Maxim

File Size:

480.72 KB

Description:

Rail-to-Rail Buffers

Features

* o Internal Precision Resistors for Closed-Loop Gains of +2V/V or -1V/V o High Speed: 230MHz -3dB Bandwidth 90MHz 0.1dB Gain Flatness (MAX4219/22) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Outputs Swing Rail-to-Rail o Input Common-Mode Range Extends Beyond VEE o Low Differential Gain/Phase Err
