MAX4613 Quad / SPST Analog Switch

Maxim

Description

19-1362; Rev 0; 4/98 Quad, SPST Analog Switch ________________General .
The MAX4613 quad analog switch features on-resistance matching (4Ω max) between switches and guarantees on-resistance flatness over the signal range (.

📥 Download Datasheet

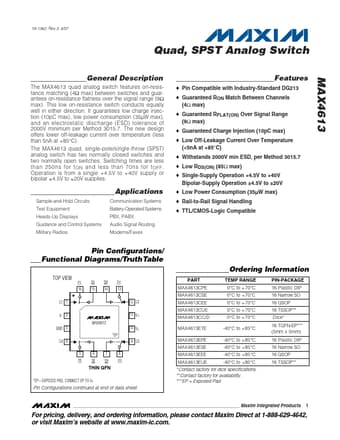

MAX4613 Datasheet Preview — Preview of MAX4613 PDF

Datasheet Specifications

Part number: MAX4613
Manufacturer: Maxim
File Size: 240.65 KB
Datasheet: MAX4613_MaximIntegratedProducts.pdf
Description: Quad / SPST Analog Switch

Features

* on-resistance matching (4Ω max) between switches and guarantees on-resistance flatness over the signal range (9Ω max). This low on-resistance switch conducts equally well in either direction. It guarantees low charge injection (10pC max), low power consumption (35µW max), and an electrostatic discha

Applications

* Sample-and-Hold Circuits Test Equipment Heads-Up Displays Guidance and Control Systems Military Radios Communication Systems Battery-Operated Systems PBX, PABX Audio Signal Routing Modems/Faxes Pin Configuration/ ____Functional Diagram/TruthTable PART Ordering Information TEMP. RANGE 0°C to +70°C
