MAX4615

Low-Voltage / High-Speed / Quad / SPST CMOS Analog Switches

MAX4615 Features

* o Fast Switching Times 12ns tON, 10ns tOFF o Pin Compatible with Industry-Standard 74HC4066/MAX4610 o Guaranteed On-Resistance 10Ω max (+5V supply) 20Ω max (+3V supply) o Guaranteed Match Between Channels (1Ω max) o Guaranteed Flatness Over Signal Range (1Ω max) o

MAX4615 General Description

The MAX4614/MAX4615/MAX4616 quad, low-voltage, high-speed, single-pole/single-throw (SPST) analog switches are pin compatible with the industry-standard 74HC4066/MAX4610 analog switches. On-resistance (10Ω max) is matched between switches to 1Ω max and is flat (1Ω max) over the specified signal rang.

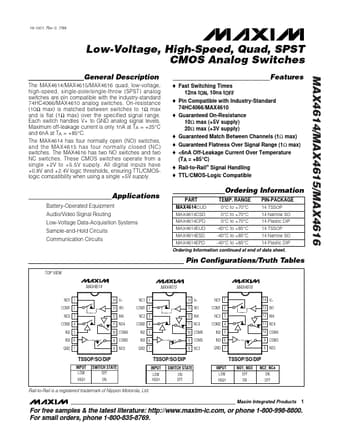

MAX4615 Datasheet (167.41 KB)

Preview of MAX4615 PDF

Datasheet Details

Part number:

MAX4615

Manufacturer:

Maxim

File Size:

167.41 KB

Description:

Low-voltage / high-speed / quad / spst cmos analog switches.
