MAX4680, 1.25 / Dual SPST / CMOS Analog Switches

19-1513; Rev 0; 7/99 1.25Ω, Dual SPST, CMOS Analog Switches General .
The MAX4680/MAX4690/MAX4700 dual analog switches feature low on-resistance of 1.

MAX4680_MaximIntegratedProducts.pdf

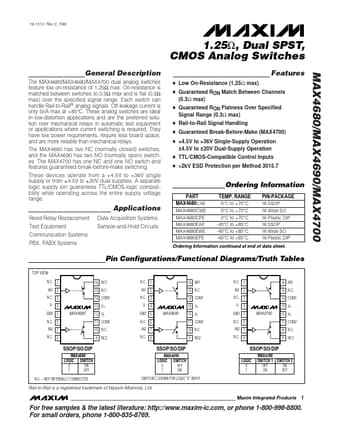

MAX4680 Datasheet Preview — Preview of MAX4680 PDF

Datasheet Details

Part number:

MAX4680

Manufacturer:

Maxim

File Size:

158.02 KB

Description:

1.25 / Dual SPST / CMOS Analog Switches

Features

* guaranteed break-before-make switching. These devices operate from a +4.5V to +36V single supply or from ±4.5V to ±20V dual supplies. A separate logic supply pin guarantees TTL/CMOS-logic compatibility while operating across the entire supply voltage range. o Low On-Resistance (1.25Ω max) o Guarante

Applications

* and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays. The MAX4680 has two NC (normally closed) switches, and the
