MAX4685 - 0.5 /0.8 Low-Voltage / Dual SPDT Analog Switches

Name: MAX4685
SKU: MAX4685-420923

Maxim

📥 Download Datasheet

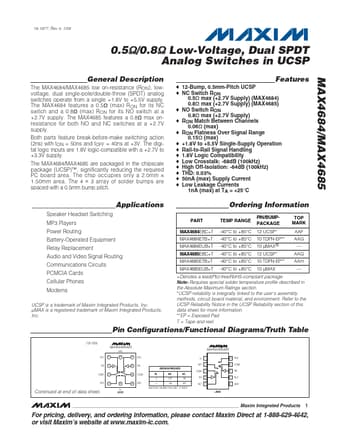

MAX4685 Datasheet Preview — Preview of MAX4685 PDF

Datasheet Details

Part number	MAX4685
Manufacturer	Maxim
File Size	139.53 KB
Description	0.5 /0.8 Low-Voltage / Dual SPDT Analog Switches
Datasheet	MAX4685_MaximIntegratedProducts.pdf

MAX4685 Product details

Description

The MAX4684/MAX4685 low on-resistance (RON), lowvoltage, dual single-pole/double-throw (SPDT) analog switches operate from a single +1.8V to +5.5V supply.

Features

a 0.5Ω (max) RON for its NC switch and a 0.8Ω (max) RON for its NO switch at a +2.7V supply. The MAX4685 features a 0.8Ω max onresistance for both NO and NC switches at a +2.7V supply. Both parts feature break-before-make switching action (2ns) with tON = 50ns and tOFF = 40ns at +3V. The digital logic inputs are 1.8V logic-compatible with a +2.7V to +3.3V supply. The MAX4684/MAX4685 are packaged in the chipscale package (UCSP)™, significantly reducing the required PC board area. The chip occupie.
