MAX500 - CMOS / Quad / Serial-Interface 8-Bit DAC

MAX500 Description

19-1016; Rev 2; 2/96 CMOS, Quad, Serial-Interface 8-Bit DAC _______________General .
The MAX500 is a quad, 8-bit, voltage-output digital-toanalog converter (DAC) with a cascadable serial interface.

MAX500 Features

* o Buffered Voltage Outputs o Double-Buffered Digital Inputs o Microprocessor and TTL/CMOS Compatible o Requires No External Adjustments o Two- or Three-Wire Cascadable Serial Interface o 16-Pin DIP/SO Package and 20-Pin LCC o Operates from Single or Dual Supplies MAX500 ______________Ordering Info

MAX500 Applications

* Minimum Component Count Analog Systems Digital Offset/Gain Adjustment Industrial Process Control Arbitrary Function Generators Automatic Test Equipment ________________Functional Diagram SRO VREFC AGND DGND VSS VDD LDAC VREFA/B VREFD VOUTA INPUT REG A DAC REG A DAC A
* Contact factory for dice

📥 Download Datasheet

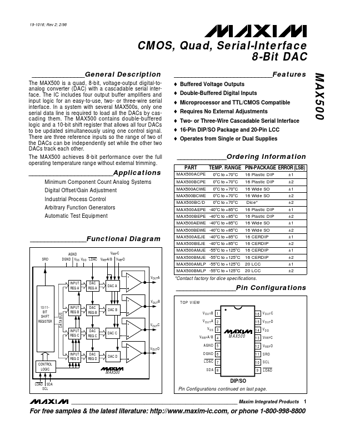

Preview of MAX500 PDF
